HV XLPE Insulated Non Metallic Screened ABC HDPE AS/NZS 3599.2 ABC cable manufacturer from China ZhengZhou Sanhe Cable Co.,LTD

HV XLPE Insulated Non Metallic Screened ABC HDPE AS/NZS 3599.2 ABC cable

Payment Terms:	T/T,L/C
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean

Packing: Wooden drum, Iron wooden dr...

Application: Overhead

Insulation Material: XLPE

Brand Name: sanhe

Production Capacity: 280 Kilometer/Kilometers /...

Delivery Date: Depending on the quantity y...

Type: High Voltage

Conductor Material: Aluminum

XLPE insulated non metallic screened aerial bundled cable with HDPE covering to AS/NZS 3599.2

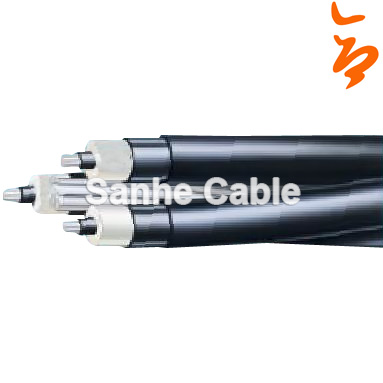

The cable bundle

The three single core cables are bundle around the galvanized steel catenary in a right hand lay.

Operating temperature:

A .Normal operation 90⁰C;

B. Emergency operation 105⁰C

C. Short circuit operation250⁰C.

This cable can be used for aerial as well as underground installation.

Non Metallic Screened HV ABC conductors

Phase conductors are stranded circular compacted aluminum alloy 1350 to H68 condition. The standard catenary is bare stranded circular compacted all aluminum alloy AAAC/1220 conductor. For special applications, such as high wind locations, aluminum-clad steel-reinforced catenaries are available.

Conductor Screen, Insulation and Insulation Screen

Semi-conductive conductor screen, XLPE insulation and semi-conductive insulation screen are triple extruded. The insulation screen is hand strippable without preheating and complies with strippability and adhesion tests given in AS/NZS 3599.

HV XLPE Insulated Non Metallic Screened ABC HDPE 6.35/11kV & 12.7/22kV

XLPE insulated non metallic screened aerial bundled cables with HDPE covering to AS/NZS 3599.2.

Aluminum conductors, aluminum alloy 1120 support conductor.
